Metal Cascade Mini Rings

Place of Origin : China

Brand Name : EH

Certification : ISO9001：2000

Model Number : Metal Cascade Mini Rings-001

MOQ : 1CBM

Price : Negotiable

Packaging Details : Ply-Wooden Cases

Delivery Time : 15-30 Days

Payment Terms : T/T,L/C

Supply Ability : 100 CBM per Month

Contact Now

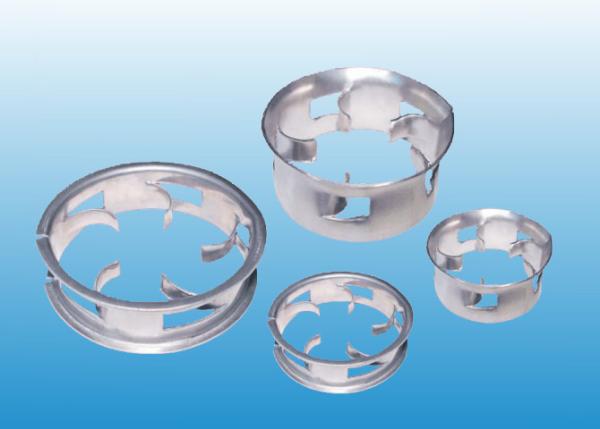

Metal Cascade Mini Rings

Metal Cascade Mini Rings are widely used in desulfurization and decarburization system in compound ammonia plant, decompressed plant in crude oil separated plant, all kind of separation process such as separation of methanol, separation of organic acid, and used in absorb or dis-absorb tower.

size	mm	Bulk density kg/m3	Accumulation NO. pcs/m3	Surface Aream2/m3	Void Rate	Packing Factor m-1
size	(OD×ID×H×THK)	Bulk density kg/m3	Accumulation NO. pcs/m3	Surface Aream2/m3	%	Packing Factor m-1
0P	Φ17×Φ15×H6×0.3	472	530,000	427	94	55
1P	Φ25×Φ22×H8×0.3	270	150,000	230	96	40
1.5P	Φ34×Φ29×H11×0.3	201	60,910	198	97	29
2P	Φ43×Φ38×H14×0.4	230	33,170	164	97	22
2.5P	Φ51×Φ44×H17×0.4	186	17,900	127	97	17
3P	Φ66×Φ57×H21×0.4	139	8,800	105	98	14
4P	Φ86×Φ76×H29×0.4	143	5,000	90	98	10
5P	Φ131×Φ118×H41×0.6	136	1,480	65	98	7

China Metal Cascade Mini Rings wholesale

Metal Cascade Mini Rings Images
